Skylight Calendar Max Installation Guide

The Skylight Calendar Max is a wall-mounted device and requires a little setup to get everything looking right. But good news, we've got you covered!

Click Here To View The Calendar Max Installation Guide Video

Before you get started, if you're planning on installing to a recessed outlet, we recommend this power receptacle.

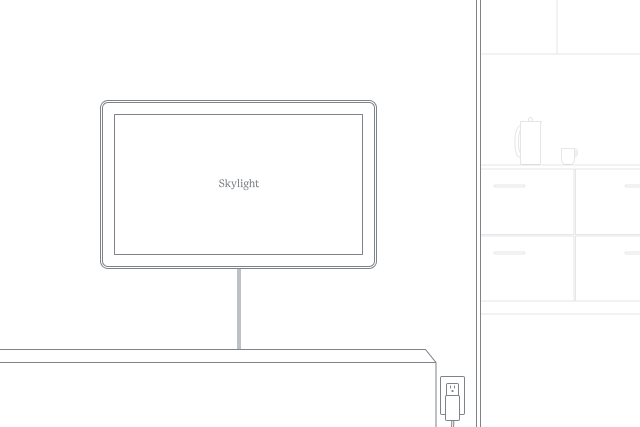

Choose a Good Spot for Your Calendar

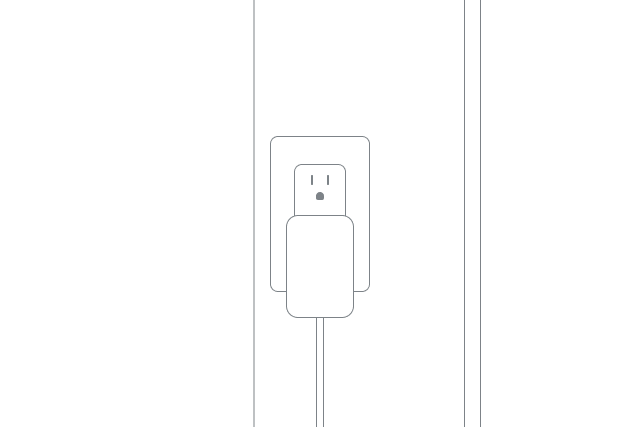

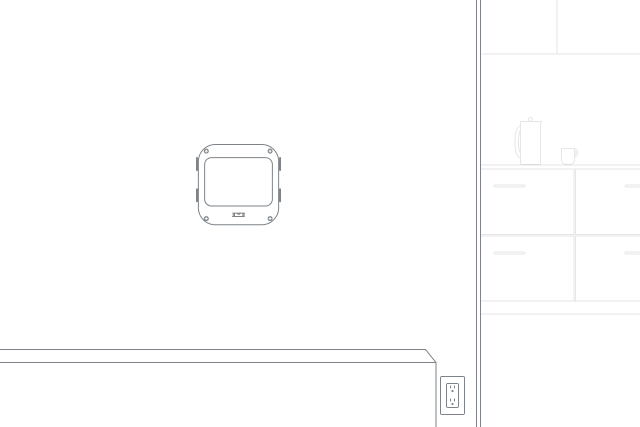

1. Choose a spot for your mount that is near an outlet.

2. For families with older children or adults, the top of the mount should be positioned at 60" (152cm).
For families with younger children, we recommend 48" (122cm).

Prepare

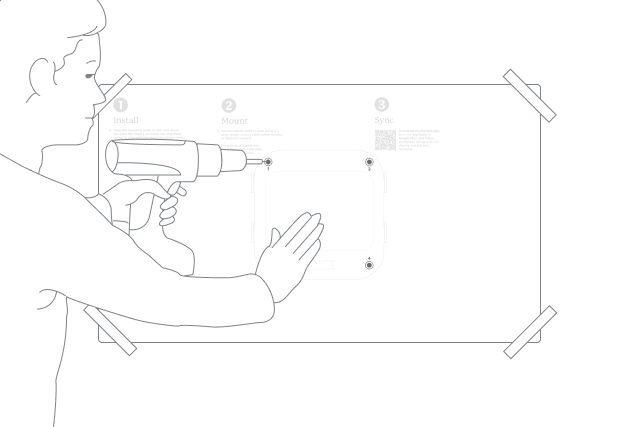

1. Tape the mounting guide to your wall where you want the display mounted, in your preferred orientation. Use the installation guide to align with the center of the sheet.

2. Drill through the guide at the Hole 1 marker using a 5/16" drill bit then remove the guide from the wall.

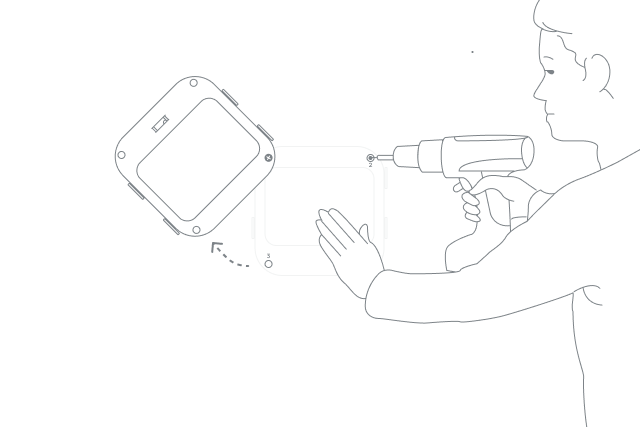

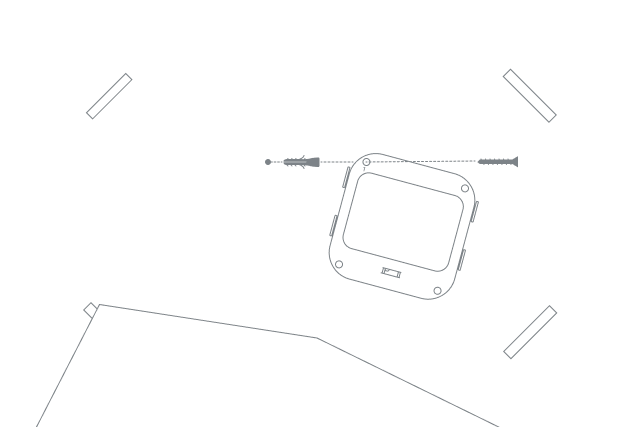

3. Insert the wall anchor in the hole you made then attach the mounting bracket with an included screw in Hole 1.

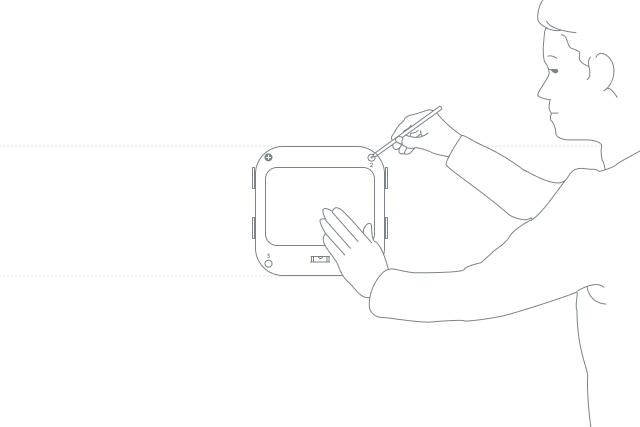

4. Adjust alignment with the built-in level and use a pencil to mark the remaining 3 holes.

5. Drill holes where the remaining 3 holes should go.

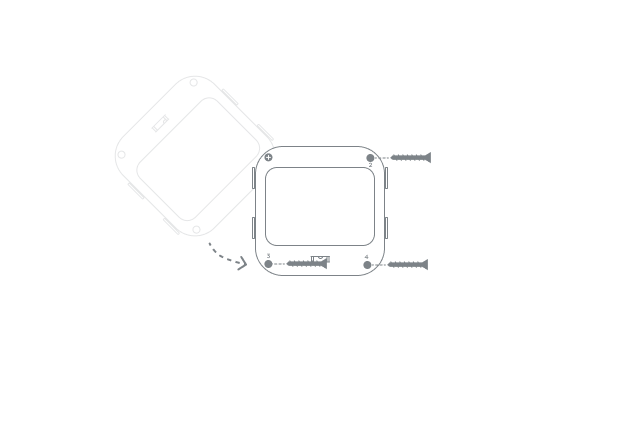

6. Insert the remaining 3 wall anchors in Holes 2-4.

7. Install the remaining 3 screws in Holes 2-4.
