Unboxing & Installing Your 15” Calendar

Thank you for purchasing a Skylight Calendar!

Contents of the Box

The Skylight Calendar box should contain:

Skylight Calendar
Quick Start Guide
Stand (two pieces)
Mounting hardware
Seven foot long power cable (USB-A to barrel jack)
Power adapter (USB-A)

Remove the top piece of foam and gently lift the Skylight Calendar out of the box. The stand, bracket, mounting hardware, and power accessories are in the box under the Calendar.

Carefully peel the protective film off of the screen.

Attach the Stand or Wall Mount

The Skylight Calendar comes with two mounting options:

A stand, for placing the Calendar on a table, desk, countertop, or other flat surface
A bracket, for hanging the Calendar on the wall

Use the stand to support the Calendar on a flat surface.

To attach the stand, you will need:

a Phillips-head screwdriver

Attach the stand to the Calendar:

Lay the calendar face down on a clean, flat surface.

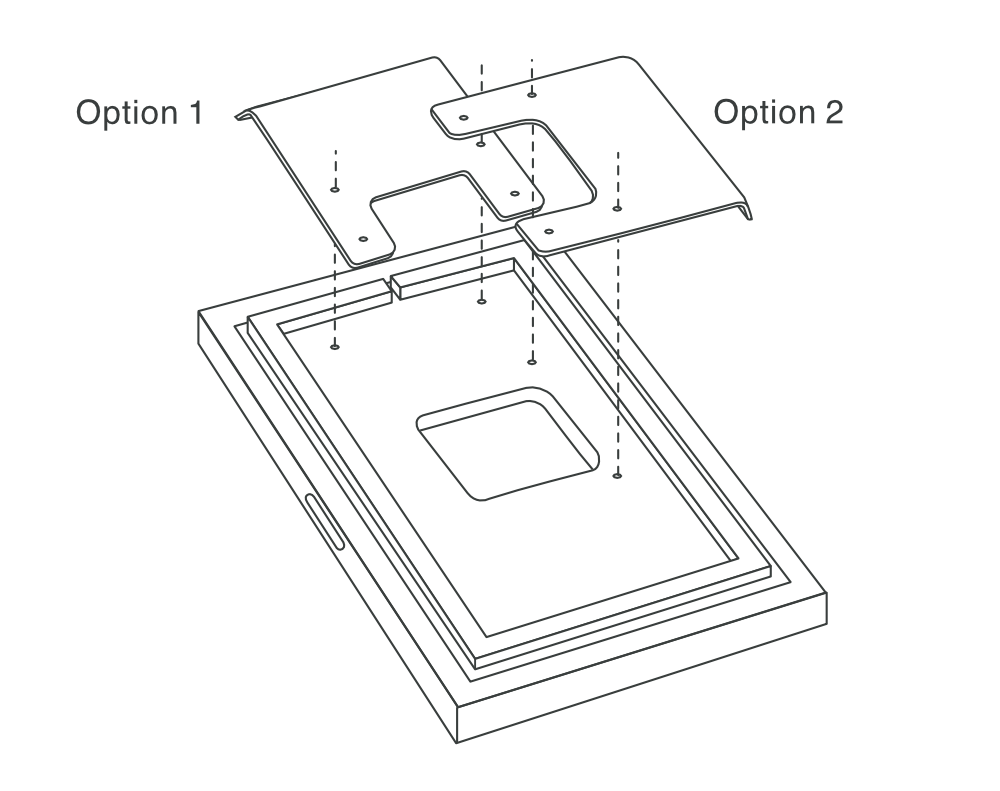

Align the holes of the base plate with a pair of holes on the back of the Calendar.
You can align the baseplate to display the Calendar in either portrait (option 1) or landscape (option 2) mode.
Attach the base plate to the Calendar with the 1/4" machine screws.
Tighten screws until finger-tight and secure.

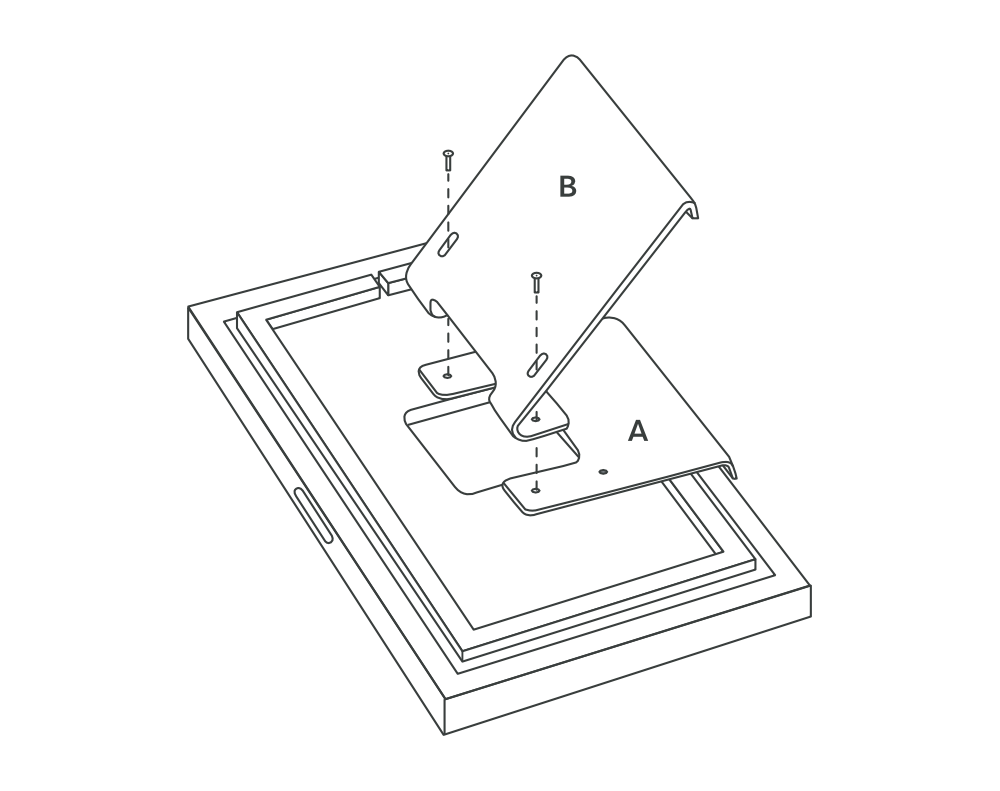

Align the holes of the angled stand (B) with the small holes in the base plate (A).
Attach the angled stand to the base plate with the small machine screws.
Tighten the small machine screws by threading the screwdriver through the slots in the angled stand.

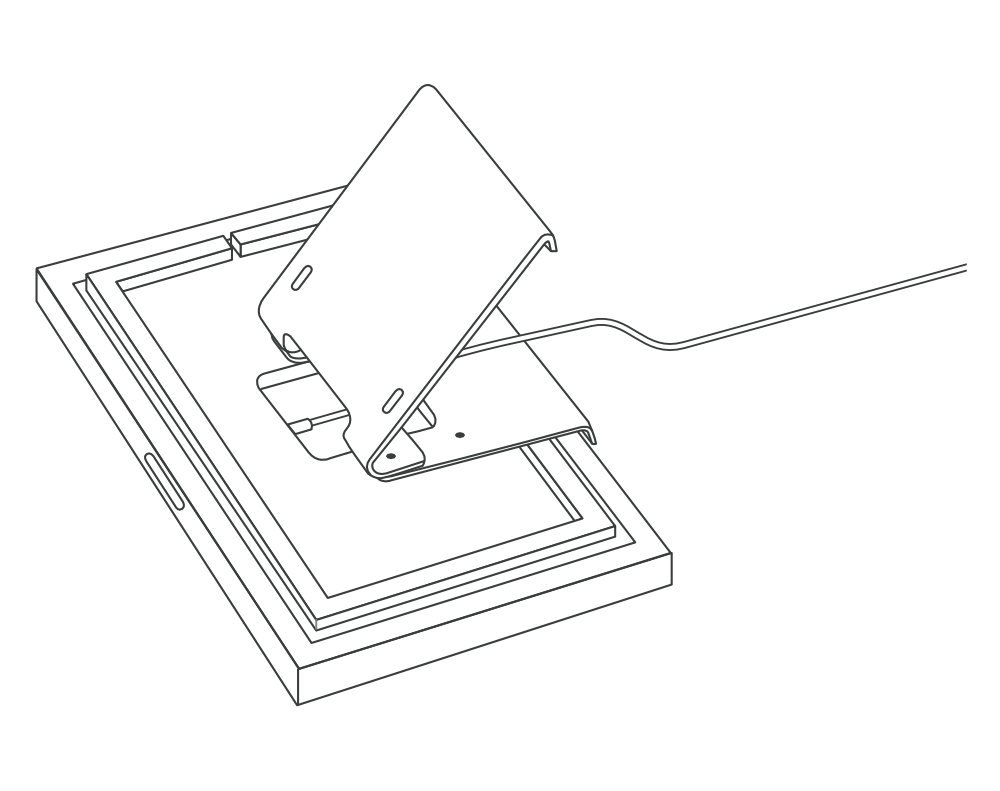

Plug the barrel connector end of the power cable into the Calendar.
Plug the other end of the power cable into the adapter.
Plug the adapter into a nearby electrical outlet.

Attach the bracket to hang the Calendar on the wall.

To attach the bracket to the wall, you will need:

a Phillips-head screwdriver
a drill
a 1/4" drill bit

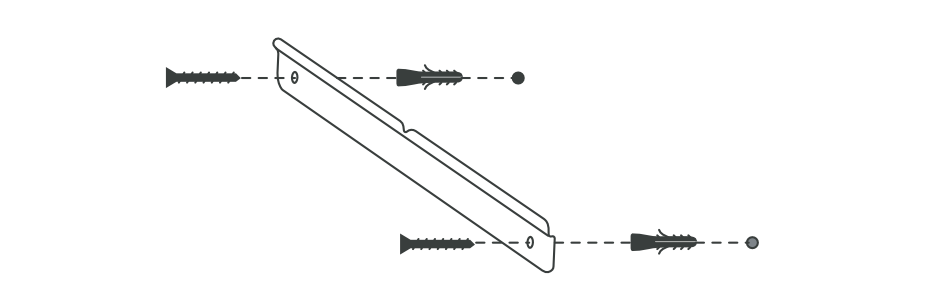

Attach the bracket to the wall:

Place the bracket against the wall and mark the holes.
You can use a level to make sure the bracket is mounted straight.
Drill 1/4" holes in the wall at the marked spots.
Insert the provided plastic anchors into the holes
Attach the bracket to the plastic anchors with the provided screws.
Attach the bracket so the pleat is facing toward you, and up.
Plug the barrel connector end of the power cable into the Calendar.

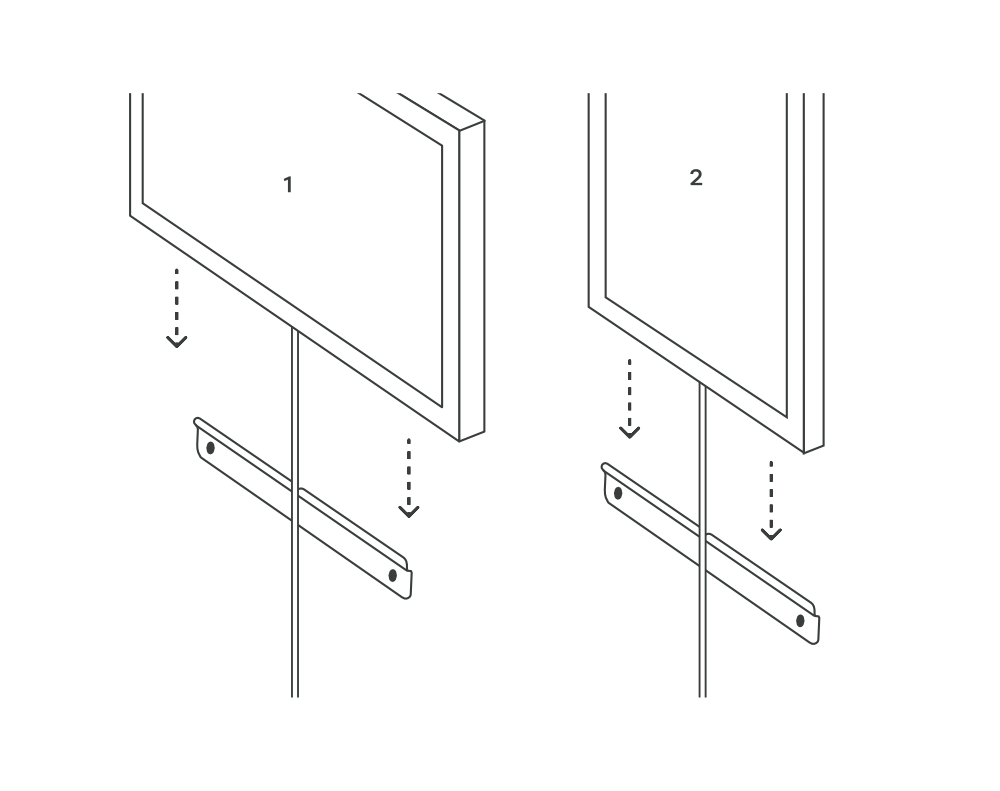

Align the top of the bracket with the grooves on the back of the Calendar.
You can hang the calendar in landscape or portrait mode.
Plug the other end of the power cable into the adapter.
Plug the adapter into a nearby electrical outlet.
