Thank you for purchasing a Skylight Calendar Max!
Contents of the Box
The Skylight Calendar Max box should contain:
- Skylight Calendar Max
- Decorative Frame
- Quick Start Guide
- Installation Guide
- Wall Mounting Bracket
- Mounting hardware
- Power supply
Remove the top piece of foam and gently lift the Skylight Calendar out of the box. The wall mounting bracket, mounting hardware, and power accessories are in the box under the Calendar.
Carefully peel the protective film off of the screen.
Installing the Calendar Max
The Skylight Calendar Max comes with a wall mounting to hang the Calendar Max on a wall.
When choosing a place to hang your Calendar Max, make sure a power outlet is nearby.
Choose a good height for your Calendar Max. For families with older children or adults, we recommend positioning the top of the mount at 60in (152cm) from the floor. For families with younger children, we recommend positioning the top of the mount at 48in (122cm) above the floor. Always double-check the height of your Calendar Max with your family members to make sure everyone in your household can use the Calendar comfortably and safely.
Attach the Wall Mounting Bracket to the Wall
To attach the wall mounting bracket to the wall, you will need:
- masking tape
- a pencil
- a Phillips-head screwdriver
- a drill
- a 5/16" drill bit
Attach the bracket to the wall:

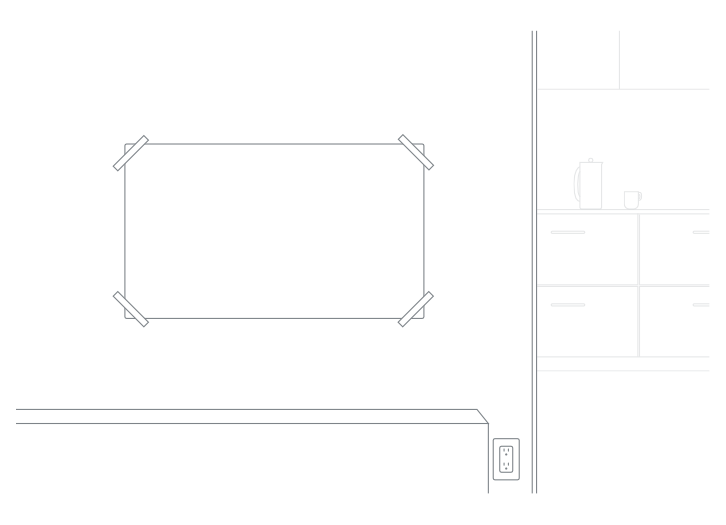

- Tape the installation guide to your wall in your preferred orientation.
Use masking tape, or another tape with a gentle adhesive to avoid damaging your paint. - Use the guide to align the wall mount with the center of the sheet.

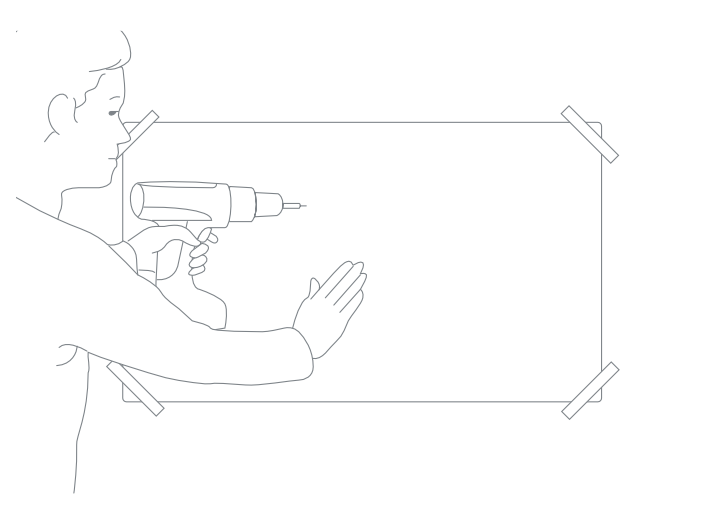

- Drill through the guide at the Hole 1 marker using a 5/16" drill bit.
- Carefully remove the guide from the wall.
- Insert the wall anchor in Hole 1.
- Attach the mounting bracket with one of the screws.
- Adjust alignment with the built-in level and use a pencil to mark Hole 2, Hole 3, and Hole 4.

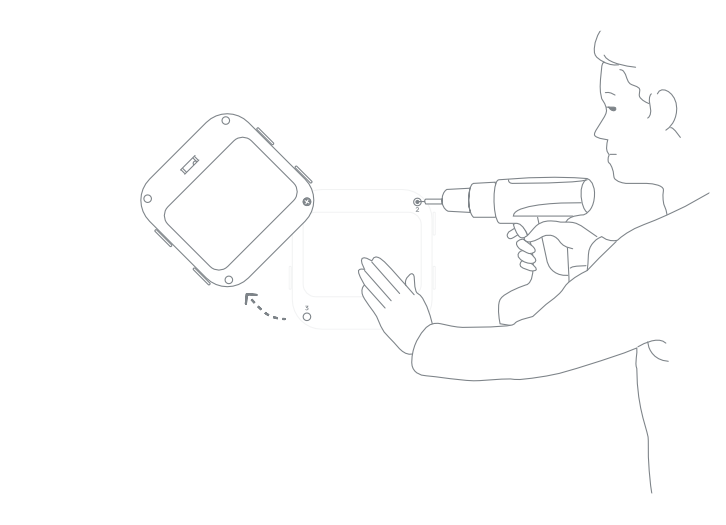

- Drill holes at the marks for Hole 2, Hole 3, and Hole 4.
Rotate the mounting bracket up, and tape it in place to keep it out of the way. - Insert the remaining 3 wall anchors in Holes 2, 3, and 4.

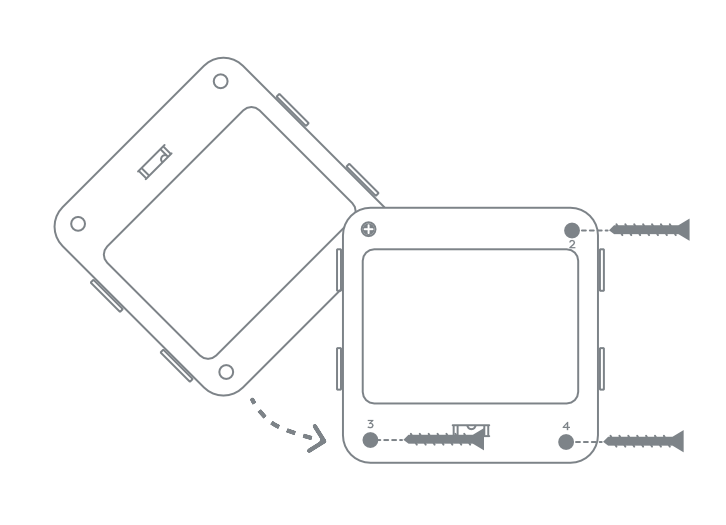

- Position the mount back over the holes and wall anchors and screw the remaining three screws into Holes 2, 3, and 4.
Mount the Calendar on the Wall Mounting Bracket
- Insert the power supply into the port on the back of your Calendar.
If needed, wind any extra length around the cable holder on the back of the display. - Hang the back of the display over the mounting bracket and slide in for safe connection.
- Plug the power adapter into an outlet.
The installation of your Skylight Calendar Max is complete.
